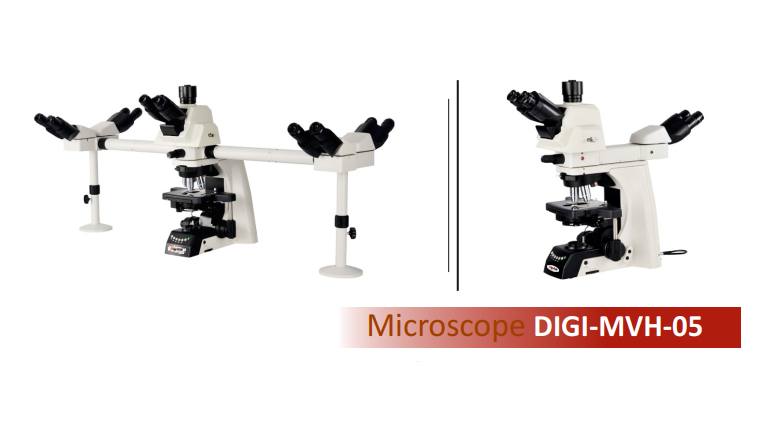

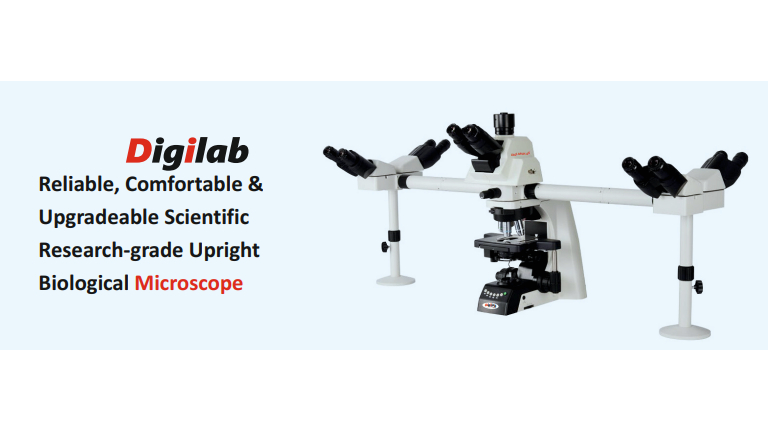

Digi MVH 5
Digilab microscope is equipped with 05 Heads for 05 Persons observing at the same time. With the features of Infinity Optical System, Kohler Illumination, 2/3 LED Color Pointer and Images Coherence, It is widely used in Clinic, Research and Teaching & Demonstrations.
Ergonomic Design, Comfortable Operating Experience
Low-Hand Operating Handle, Single hand/down slice, Platform low regulator, Low-hand focusing mechanism, ECO lighting system, Light intensity management function
- Low-Hand Operating Handle
- Single hand/down slice
- Platform low regulator
- Platform low regulator
Operating Design & Model View
Digi-MVH-05 is specially designed for life science research and can meet the needs of various microscopic imaging in the laboratory. The mechanical structure is stable, compact, ergonomic design, reasonable layout, comfortable to use, and can operate the microscope in a natural posture. Adopting the NIS infinity optical system after years of research and continuous improvement, it has excellent optical quality such as long working distance and strong chromatic aberration correction ability, reliable imaging, providing high-contrast, clear and bright images, and assisting you in cutting-edge life science research. Digi-MVH-05 microscope adopts modular design, which can realize observation methods such as bright field, dark field, differential interference, fluorescence, and polarized light. It is an ideal tool for experimental teaching, scientific research and medical examination.
Specification :
- Infinity Color corrected Hard Coated Anti- Reflecting and Anti-fungal Coting.
- 30°inclined, interpupillary distance: 47-78mm, diopter adjustable:+/-5, Head binocular/ trinocular head, 3 position (0:100, 50:50 & 100:0) / (100:0,20:80,0:100)
- 4 Head with 30° inclined, interpupillary distance : 48-75mm, diopter adjustable: +/-5
- High Eyepoint Wide Field Plan Eyepiece PL10/22mm, Optional PL10/25mm
Features
Observation Head 3 Position, Reversed Sextuple / Septuple Nosepiece, Infinity Plan Achromatic/S-APO Objective, 100W Kohler Illumination, IR Sensor for Auto-off, Aperture for Auto-off, Aperture for Field Diaphragm, Next Generation Refocusing, Slot for POL/DIC, Super Hard & Scratch Resistant, Both Side Reckless, Fluorescent Illumination*, Multiple Contrast Technologies*, Motorized Control for X, Y(Stage)*, Motorized Control for Z Axis (Focus)*, Application Software Solutions*, Imaging Camera for Photo Capture*, Upgradable to DIC and 6-8 position Fluorescence attachment.
- Observation Head 3 Position
- Reversed Sextuple / Septuple Nosepiece
- Infinity Plan Achromatic/S-APO/APO Objective
- 100W Kohler Illumination, IR Sensor for Auto-off, Aperture for Auto-off
