Digicam H20

USB CAMERAS DIGICAM - H SERIES

project-img
project-img
project-img

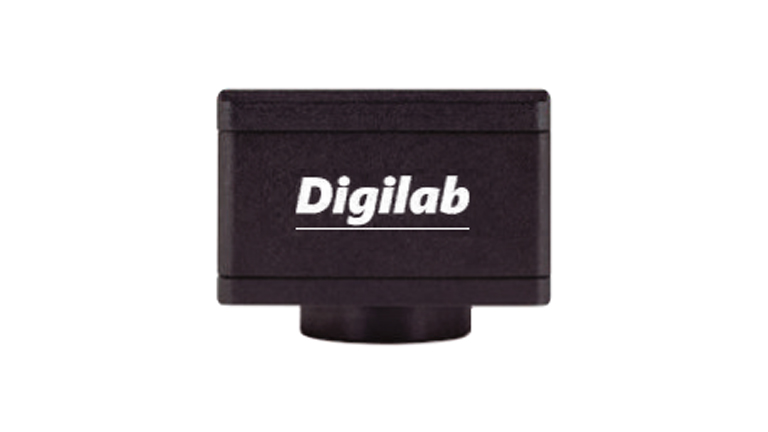

DIGICAM-H20

The new Digilab sCMOS cameras developed by German engineering represents a new impetus to manufacturing quality, technical precision and lightweight design. With a member of this line the door for new application fields opens wide. The accelerated data readout (Rolling Shutter) also enables to work on fast moving phenomena. If it is about maximum resolution for printing purposes, Digicam H20 is your choice. A18fps maximum frame rate manages the largest data volume of Digicam H Series when capturing at the highest resolution. If resolution in display or for printing is in your mind, Digicam H20 is your solution.



TECHNICAL SPECIFICATIONS
Sensor type: SCMOS, Sensor size: 1", Imaging area: 15.86mm (Diagonal), Capture resolution: 20MP, Live display mode through USB: 5472x3648, 2736x1824 pixels, Pixel size: 2.4x2.4μm, Scan mode: Progressive, Shutter mode: Rolling Shutter, Data transfer: USB 3.1, Max. frames per second (fps*): 5472x3648 @ 18fps, 2736x1824 @ 50fps, Exposure time: 15 μsec to 2 sec, Operating temperature: From -10 to +60 Degrees Celsius non condensing Sensitivity: 461mV(G) @ 1/30 sec, Support device: TWAIN, SDK and DirectShow Driver, Supported OS: Windows 7/8/10, MAC OSX, Linux or higher, Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB, Lens mount: C-Mount Software: Digi Images Plus 3.1 for Windows, OSX and Linux, Functions: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. Power supply: 5V (from USB Port) Package includes: CS ring adaptor, USB 3.1 cable, 4-dot calibration slide, Digi Images Plus 3.0 Software for PC/OSX/Linux
  • Capture resolution: 20MP
  • Live display mode through USB: 5472x3648, 2736x1824 pixels
  • Operating temperature: From -10 to +60 Degrees Celsius non condensing Sensitivity: 461mV(G) @ 1/30 sec
DIGI IMAGES PLUS 3.1 IMAGE ANALYSIS SOFTWARE
By connecting your Digi to your computer you will be able to work with our wellknown software that comes included in the package. View, capture, edit, measure, make reports... all its standard features and the new ones packed in a new user-friendly interface.
  • Power supply: 5V (from USB Port)
  •  Package includes: CS ring adaptor
  • SUSB 3.1 cable, 4-dot calibration slide.
DIGI Images Plus 3.1 Soware

Instant Image Capturing, Real time full screen image, Programmed Interval Captures, Video Capture by Time Settings, Easy Measurement Calibration, Measurement in Microns, inches, Millimeters, Length Measurements, Ellipse, Rectangle, Irregular Shape Measurements, Perimeter, Radius, Circumference Measurements, Angle Measurements, Magnifier (zoom) function, Distant Image Sharing, On-line files sending/receiving, Sound recording, Image amalgamation, Image Adjustment Effects, Automatic Cell Counting, Data Export, Report Generating and Print Out, Interactive File Format, MP3 compatible.

  • Instant Image Capturing, Real time full screen imageec,
  • Automatic Cell Counting, Data Export
  • Report Generating and Print Out, Interactive File Format, MP3 compatible
