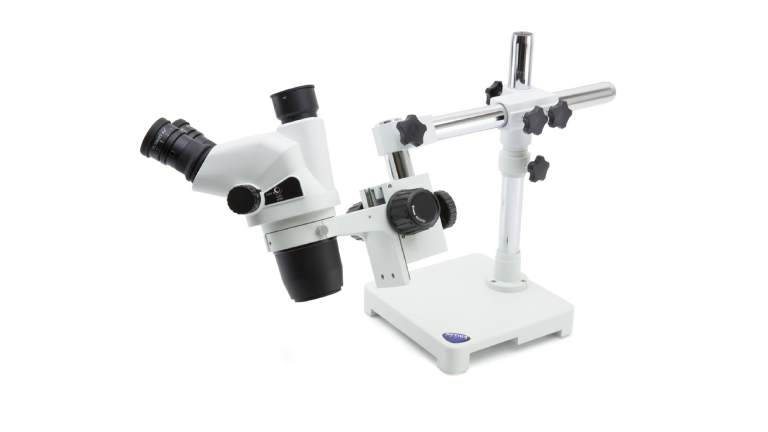

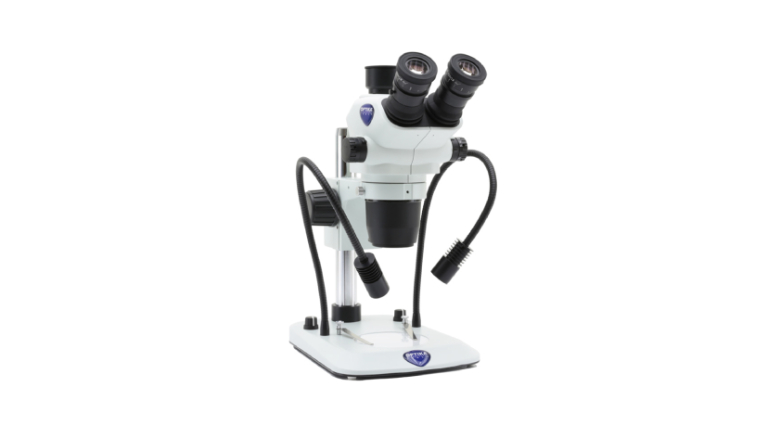

Stereoscopic Microscope DIGI-SZ-800 Series
Universal optical performance with infinity Parallel optical system. Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmied light. With complete accessories, it can be used widely for scientific research, industry, biological and medical field.
Features
- Universal optical performance with infinity Parallel optical system.
- Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light.
- With complete accessories, it can be used widely for scientific research, industry, biological and medical field.
Technical specificaons
Optical System:Parallel optical zoom system.
Viewing Head: Binocular head, 20°inclined,Interpupilary distance 55-75mm, Tilting binocular eyepiece tube, 0-35°inclined, Interpupilary distance 55-75mm.
- Eyepiece: WF10X/ 22, WF10X/2, WF15X/16, WF20X/12, WF30X/8
- Zoom Objective: 0.8X~5X, 0.8X~8X, 0.8X~6.4X
- Zoom Ratio: 1: 6, 1: 8, 1:10
- Working Distance 78mm
- Focusing Range 105mm
Illumination & Optional
Transmission & reflection LED illumination, brightness adjustable, Coaxial illumination Epi-fluorescent attachment Dark field attachment, Simple polarization set, Iris diaphragm Beam-splitter one port beam-splitter,two ports Moveable stage Temperature controlled stage Universal table stand/Table clamp stand Coaxial coarse & fine focusing unit Cold light illumination with dual light guide LCD Attachment
- Coaxial illumination, Epi-fluorescent attachment, Dark field attachment, Simple polarization set
- Iris diaphragm, Beamsplitter one port, Beamsplitter two ports, Moveable stage,
- Temperature controlled stage, Universal table stand/Table clamp stand, Coaxial coarse & ne focusing unit
- Cold light illumination with dual light guide, LCD Attachment
