Digicam 4000 Lite

HDMI & USB MultiPort

project-img
project-img

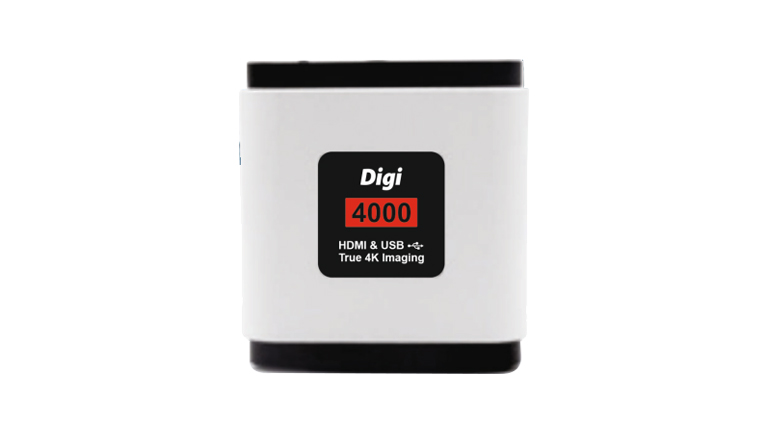

DIGICAM-4000 Lite

USB Mouse USB Mouse Input , USB Video USB Video Output , USB Data Storage , HDMI HDMI Output , DC12V DC12V Power in, SD Card Slot , ON/OFF Power On/Off Switch , LED Power Off Red,Power On Blue



SPECIFICATIONS
SAP Code: 1100600101532, Sensor: IMX334, Sensor Size: 1/1.8"(8.86mm), Imaging Area: 7.68 x 4.32mm, Capture Resolution: 8MP, Pixel Size: 2.0 x 2.0µm, Scan Mode: Progressive, Shutter Mode: Rolling Shutter, G Sensitivity Dark Signal: 505 mv with 1/30s, Exposure Time: 0.04~1000ms, Operating Temperature: From-10 to + 50 Degrees Celsium non condensing, Operating Humidity: 30~80%RH Lens Mount: C-Mount, Software: Digi Images Plus 3.1 for Windows/Mac OS Package Includes: 12V Power Adapter, CS Ring, Digi 4-dot Calibration Slide, HDMI Cable, Manual
  • Capture resolution: 8MP
  • Pixel Size: 2.0 x 2.0µm, Scan Mode: Progressive
  • Shutter Mode: Rolling Shutter, G Sensitivity Dark Signal: 505 mv with 1/30s
INTERFACE & BUTTON FUNCTIONS
USB Mouse Input, USB Video Output, Data Storage, HDMI Output, DC12V Power in, SD Card Slot, Power On/Off Switch, LED: Power Off Red,Power On Blue
  • USB Mouse Input, USB Video Output
  •  Data Storage, HDMI Output
  • LED: Power Off Red,Power On Blue
Features

With USB Mouse, JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card, 4k(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card, Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Diagnosing Control, Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function, 30fps@3840*2160

  • Auto White Balance
  • AItra-FineTM Color Engine
  • Still Picture or Movie
