Digi 110 Infinity

Biological Research Microscope

project-img
project-img
project-img

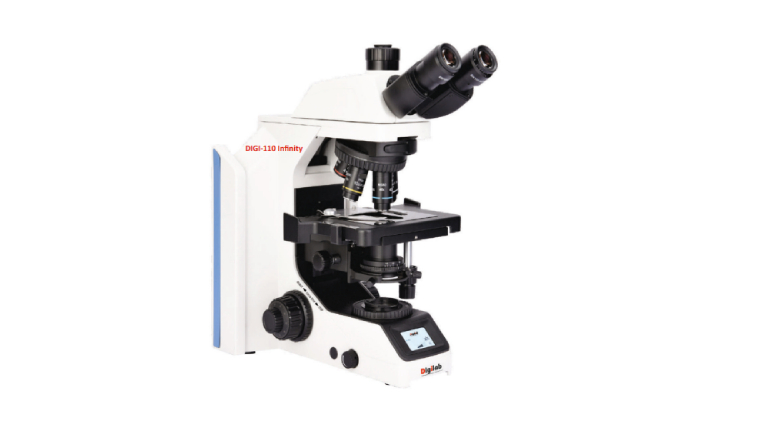

Digi 110 Infinity

The latest DIGI110 Infinity series microscope is designed for professional laboratory microscopic observation. On the one hand it has upgraded optical system , Infinity optics system provides excellent extendibility for this microscope, high numerical aperture (NA) plan achromatic objective and various types of optical components which have adopted multilayer coating technology could ensure the image quality. On the other hand, improving comfort and operation convenience continuously, and the LCD screen in front of the microscope displays real-time status of microscope during working, universal condenser, stopper that can be used to set the upper limit of the stage height etc., these structures ensure that beginners can use it smoothly. Ergonomic design helps you to stay focused for longer by reducing the strain on your body, which is the best choice for scientific research experimenters and medical examiners for microscopic observation

Ergonomic design
In daily scientific research, teaching and pathological diagnosis, working in front of a microscope for a long time has become the norm, and the subsequent use fatigue often leads to physical discomfort, thereby reducing work efficiency and effectiveness. This microscope adopts a series of ergonomic design, high eye point, low-hand focusing mechanism, low-hand stage and other ergonomic designs to ensure that users can operate the microscope in the most comfortable situation. The focus knob, illumination control knob, and stage handle are all in close proximity, allowing the user to work with both hands on the tabletop and minimal movement to operate.
  • ·Comfortable and worry free focus knob
  • Put Slide by one hand
  • Easy-to-rotate Quintuple coded nosepiece
  • Uniform and stable brightness
Intuitive operation and easy-to-use

Using status including magnification,brightness,color temperature,stand by status are shown on the LCD which is in front of microscope. Longtime microscope observation requires frequent magnification switching, brightness adjustment, color temperature adjustment, etc. Digi-110 Infinity simplifies these repetitive mechanical operations and reflected status on the LCD to improve work efficiency and provide comfortable user experience.

  •  Status Display, Smart Design
  • Easy-to-rotate quintuple nosepiece
  •  HIGH-ACCURACY IMAGE
  •  HIGH PRECISION EASY OPERATION
Specifications
Infinity Color corrected Hard Coated Anti-Reflecting and Anti-Fungal Coating. Inclination angle 30°, digital viewing head, pupilary distance:47-78mm. Inclination angle 30°, wireless WIFI digital viewing head, pupilary distance:47-78mm
  • Fluorescence Grade Semi apochromatic objectives 4x/(0.15), 10x/(0.30) PH1, 20x/(0.50) PH2, 40x/(0.95) PH2 and 100x/(1.40) PH3 (Oil)
  •  Quintuple/Sextuple coding nosepiece
  •  Abbe condenser(NAO.9), with Iris diaphragm
  •  Swing-out achromatic condensor (NA0.9/0.25), with Iris diaphragm
