Biocen 22 R Centrifuge

One of the best options when high speed and different tube formats are required

project-img
project-img
project-img

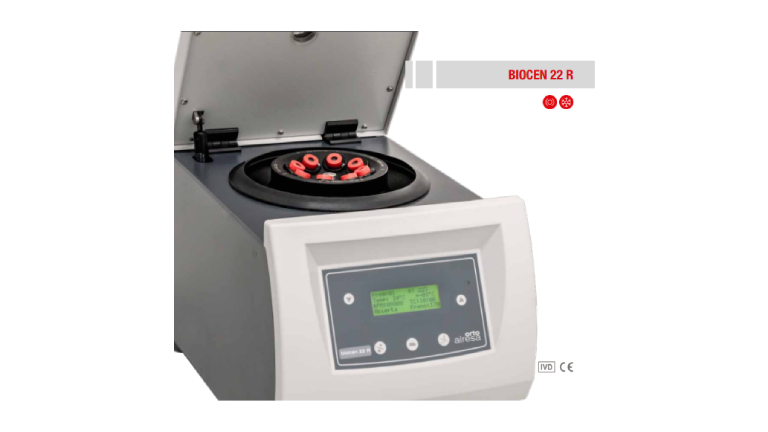

Biocen 22 R Centrifuge

One of the best options when high speed and different tube formats are required. This refrigerated microcentrifuge, which has a wide range of rotors for a cooled centrifuge, can work with conical type tubes from 0,2 ml. to 15 ml. Dynamic cooling equipment keeps the desired temperature, reaching it in a short period of time and maintaining it stable throughout the whole cycle, regardless of the operation speed. Customisation of equipment options through the software enables you to adapt the work cycles to the process, as well as the user preferences, thus optimising performance in your laboratory.

For Ortoalresa, the Biocen 22 R centrifuge is the culmination of its know-how in centrifugation, materialised for the user in a robust, versatile and efficient piece of equipment that integrates perfectly into any lab, highlighting its application in research and biotechnology.

Features
LCD screen:
  • Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).
  • Speed programming in 10 RPM/ 10 xg steps.
  • Count up/down from “0” or at “set RPM/RCF” for reproducible tests.
  • Timer from 5 sec to 99 min. programmable in 5 sec. steps and hold position.
  • PCBS: Progressive controlled braking system up to 175 selectable ramps that prevents sample homogenization after separation.
  • 16 programmable memories.
  • Several acoustic and visual messages showing the situation of the device to the
Easy to use
• Microprocessor controlled. • Induction motor maintenance free (brushless). • Rotors list in memory. • Noise level: below 65 dB. • Start, stop, open lid and short spin with adjustable speed buttons. • Possibility to block or modify the speed during the cycle. • Low height for easy access. • Last values remain in memory. • Automatic rotor recognition. Over-speed protection.
  • Microprocessor controlled.
  • Induction motor maintenance free (brushless).
  • Rotors list in memory.
  • Noise level: below 65 dB.
  • Start, stop, open lid and short spin with adjustable speed buttons.
  • Possibility to block or modify the speed during the cycle.
  • Low height for easy access.
  • Last values remain in memory.
  • Automatic rotor recognition. Over-speed protection.
Safety
Lid provided with security systems: - Automatic lid lock system, motorized. - Emergency lid-lock release. - Locking and protection against opening along the run. - Lid dropping protection. - Port in the lid for calibration and operation checking.
  •  Unbalance detection and switch off.
  •  Protection safety ring between the centrifugation chamber and the housing.
  •  Chamber of centrifugation in stainless steel (easy cleaning).
  •  Rotors can be removed with the lid closed. Hermetic lids.
  •  Rotors and adapters autoclavable, easy to install by the user.
  •  Automatic disconnection for energy saving up to 8 h.
