DIGI 800D

Laboratory Biological Microscope DIGI-800D

project-img
project-img
project-img

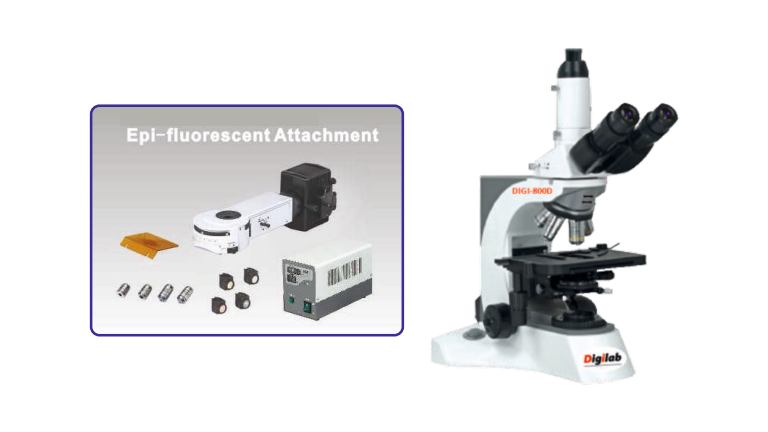

DIG - 800D Biological Microscope

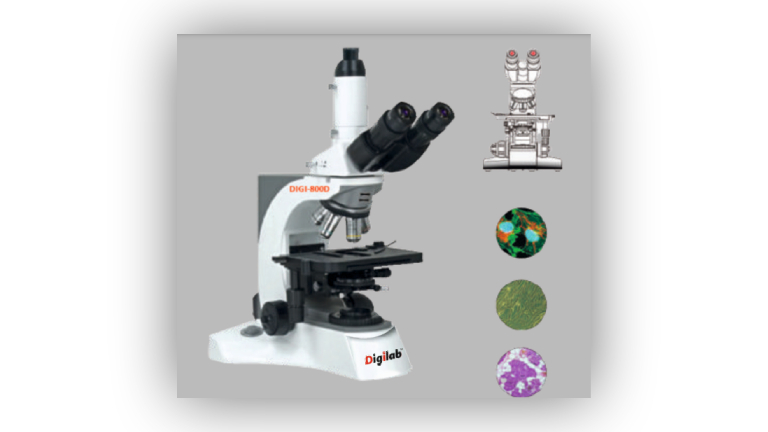

Laboratory Biological Microscope DIGI-800D

With Infinite optical system, kohler illumination, providing excellent quality and making image perfect. With low and forward position coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, reasonable ergonomic design, making operator feel more comfortable and effective

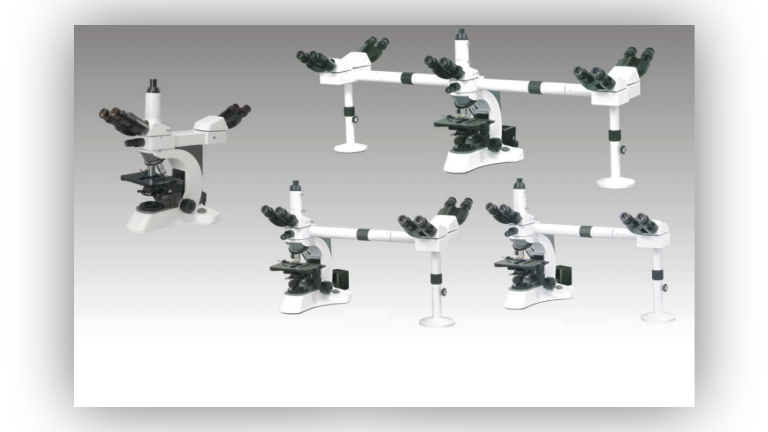

Multi-viewing Microscopes
Multi-viewing microscopes allow people to observe specimen at the sametime. With the features of infinite optical system, effective illumination, LED pointer and images coherence, it is widely used in clinic, scientific research and teaching demonstration
  • Digital Camera with relay lens
  • 2X Photo adpter to connect SLR camera
  • 7X Photo adapter
Biological Microscope Specifications

Infinity Optical System Anti-Fugus Infinity color Corrected. Seidentopf Trinocular Head Inclined at 30 , Interpupillary 48-75mm Tiltable Binocular / Trinocular Head Φ 30.  Extra Wide Field Eyepiece EW10X/20, Eyepiece Tube Diameter 30mm (Optional 22mm). Backward Quintuple Nosepiece / Backward Sextuple Nosepiece.Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine 0.001mm, 37.7mm, 0.1mm 24mm. Stroke 0.1mm per Rotation, Moving Range 24mm 185×142mm. 75×55mm.

  • Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
  • External Illumination, Aspherical Collector, Halogen Lamp 6V/30W 24V/100W
  • External Illumination, Aspherical Collector, Halogen Lamp 24V/100W
  • 3W LED Illumination / 5W LED Illumination Temperature controlling range: Room temperature to 50°c
  • Swing Condenser N.A.0.9/0.25, Swing-out achromatic Condenser (NA0.9/0.25), with Iris diaphragm
Optional Accessories
Immersion oil (5ml), power cord, Allen Hexagonal key, vinyl dust cover, Wooden box, Photo Attachment-C Mount 1X,C Mount 0.5X, Video Adapter Polarization Attachment Turret Phase Contrast Kit,Dark -Field Condenser (Dry), Dark -Field Condenser (Oil), Dark Field Attachment, Dual Head Attachment, Tri Head Attachment and Pentahead Attachment, Single Colour (Green) LED Pointer. Anti-Fungus Infinity Color corrected Hard Coated Anti-Reecting and Anti-Fungal Coating.
  • Immersion oil (5ml)
  • Power Cord
  • Allen Hexagonal Key
  • Photo Attachment-C Mount 1X,C Mount 0.5X
  • Dark -Field Condenser (Dry), Dark -Field Condenser (Oil)
