DIGI-125

Binocular Biological

project-img
project-img
project-img

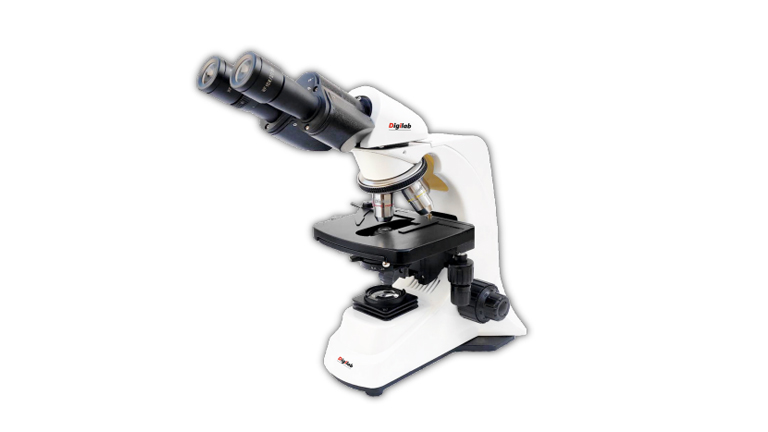

DIGI-125 Infinity Optical System

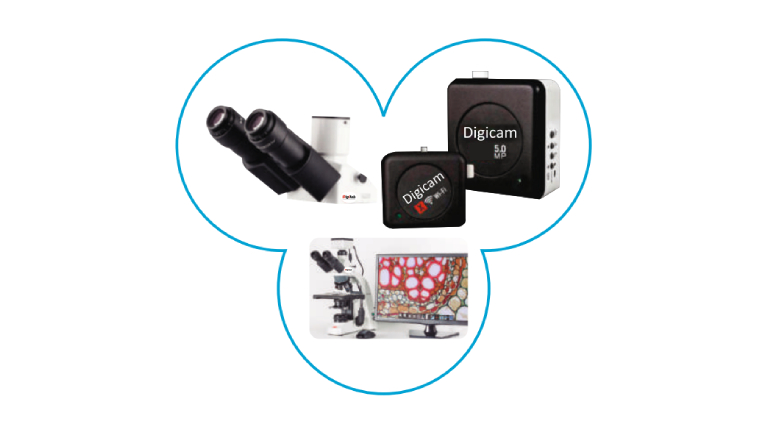

Microscope supports premium optics that delivers crisp, bright and consistent visualizaon. The microscope frame well fit the hands and the location of the control knobs maximizes ergonomics to improve work efficiency. User can quickly set a specimen with one hand, while adjusting the focus and operating with the other hand with minimal movement. Microscope features a camera port of digital imaging.

In daily scientific research teaching and pathological diagnosis, working in front of the microscope for a long time has become the norm, and the consequent use oxygen leads to physical discomfort, thereby reducing work efficiency and efffecteness. The Microscope uses an ergonomic design, high eye-point, low-hand focus mechanism, low-hand stage and other ergonomic designs to ensure the user can perform microscope operation in the most comfortable situation.The microscope employs Plan Achromat bjectives, which provide clear images with high image flatness over a wide field of view. This helps users view specimens clearly and evenly during routine microscope observations.



Stand  & Viewing Body
Single Mould, die cast sturdy stand with anti rust material with textured paint, with ergonomic extended base for hand rest and greater stability, anfun al mould treated.300 inclined Siedentopf Binocular / Trinocular tubes, 3600 rotatable with IPD 50-75mm. Antifual mould treated
  • Eyepiece: Wide Field eyepiece 10x/FOV 20mm / 22mm, with dioptric adjustment. Antifual mould treated
  • Nosepiece: Backward-leaning, quadruple/quintuple revolving nosepiece (ball bearing type) with a soft rubber grip
  • Infinity Plan Achromaac objecves, anfungal mould treated, 4x/NA 0.10, 10x/NA 0.25, 20x/NA 0.45 40x/NA 0.65 SL, 100x/NA 1.25 (SL, Oil).
Illumination
S-LED S-LED Illuminaon, Halogen Lamp 6V/20W/3W LED 3 W LED With intensity Control, Life span bulb 80,000 hrs. S-LED Illuminaon with Recharger, Baery backup for 6 hours on full charge.
  • S-LED S-LED Illuminaon, Halogen Lamp 6V/20W/3W LED
  • 3 W LED With intensity Control, Life span bulb 80,000 hrs.
  • S-LED Illuminaon with Recharger, Baery backup for 6 hours on full charge.
Objectives, Condenser, Accessories
Ergonomic low-position coaxial coarse and fine focusing system with a cross-roller guide. Fine motion of 0.2 mm per operation. Extension adjustment ring and auto-focus provided. Substage Abbe condenser, focusable, NA 1.25 with aspheric lens and aperture iris diaphragm. Includes dust cover, power cord, and wooden box. Finished with durable texture and acid-resistant coating
  • Ergonomic low-position coaxial coarse and fine focusing system with a cross-roller guide. Fine motion of 0.2 mm per operation. Extension adjustment ring and auto-focus provided.
  • Substage Abbe condenser, focusable, NA 1.25 with aspheric lens and aperture iris diaphragm
  • Dust cover, Power cord and wooden box, 08 Finish 4 Durable Texture acid resistant.
  • Double plated Rackless mechanical rectangular stage size 140 x 140mm, X/Y cross travel range 75 x 45mm.)
